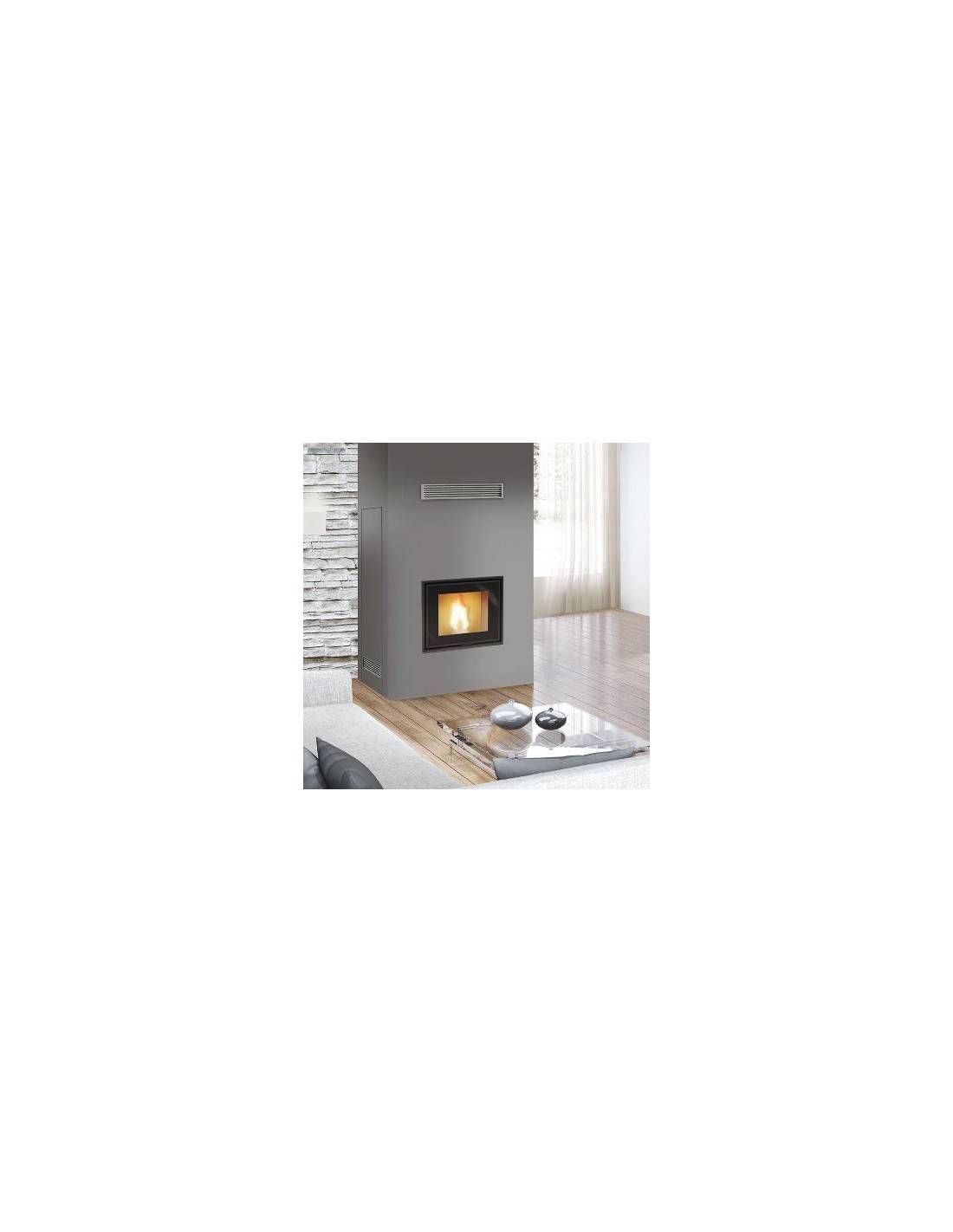

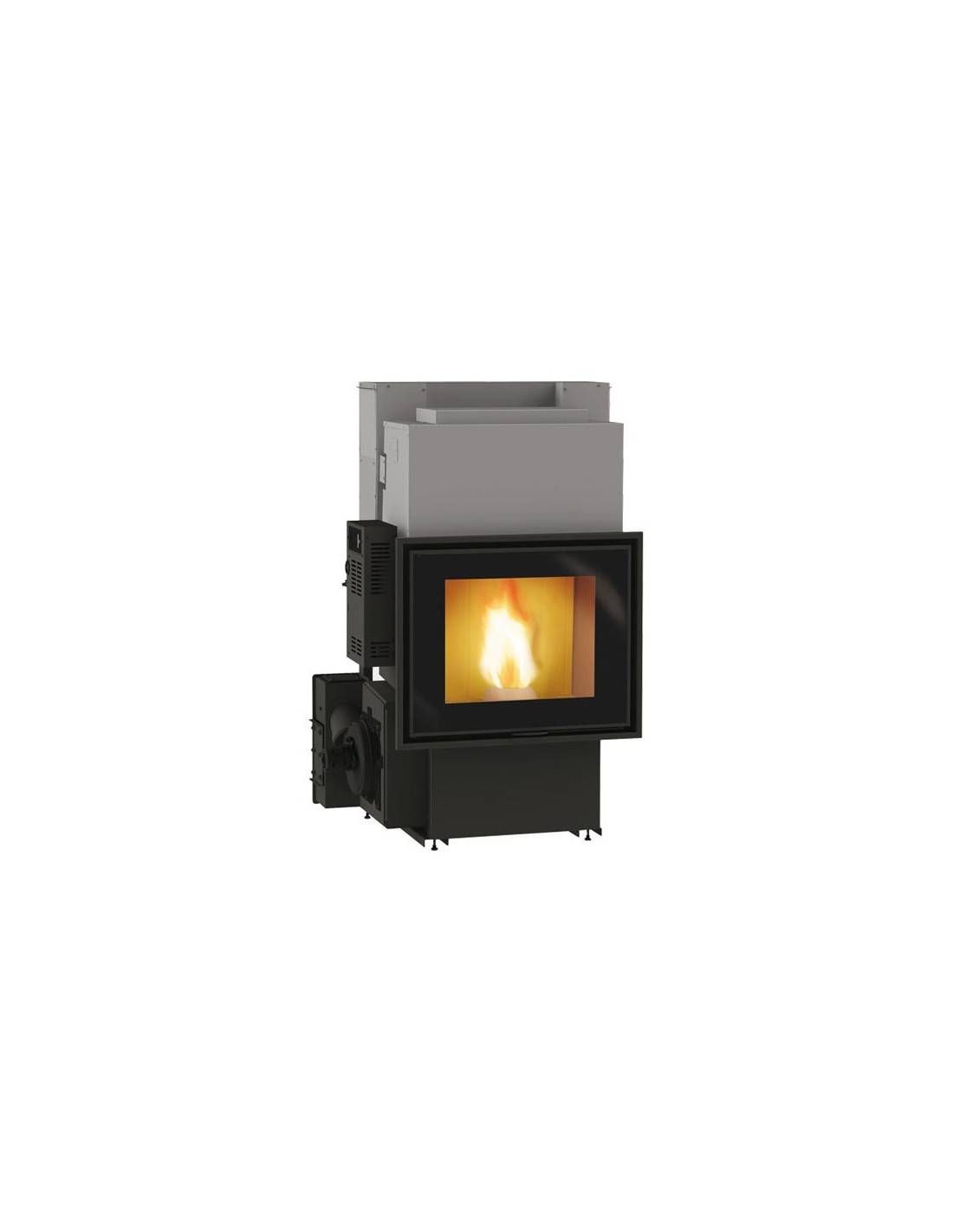

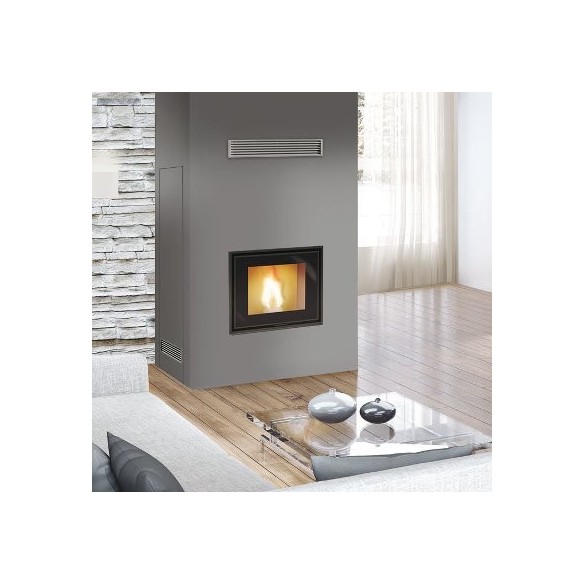

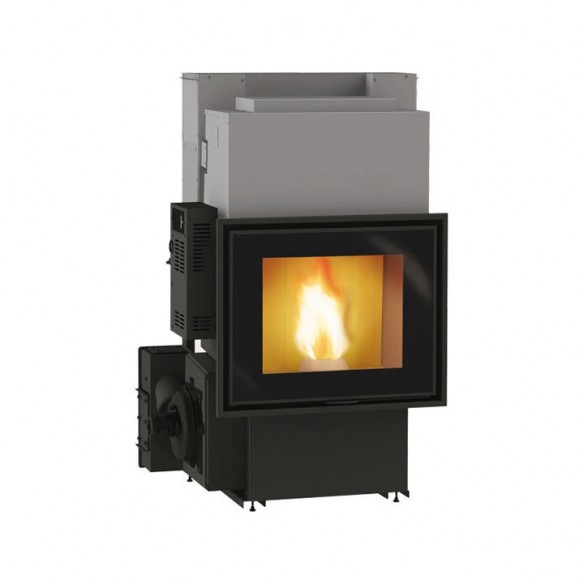

PELLET THERMO FIREPLACE IDROPELLBOX 30 EDILKAMIN

Pellet fireplace capable of heating water to power the heating system (radiators, towel warmers, radiant floor panels, etc.). Using a special optional kit, it is possible to activate the front hot air ventilation (modular and deactivatable) to heat the room where it is installed.

• Ecokeram fireplace

• Rear or top smoke outlet

• Daily / weekly programming

• Radio control with display

• Height-adjustable feet

• Built-in hydraulic kit with closed expansion vessel, modular circulator and safety valve

• Right/left side pellet loading

• Systems configurable from display, with terminal board for external probes

• Leonardo System

OPTIONAL

• Wi-Fi Kits

• GSM dialer

• “Adjacent” Air Diffuser Kit

• Front ventilation kit

• External pre-assembled hydraulic kits

TECHNICAL DATA

Length cm 97

depth cm 60

height cm 143

useful power kW 8.3/27

useful power to water kW 5.6/22

performance % 90.4

fuel consumption kg/h 1.8/6.2

tank capacity kg 60

autonomy h 10/33

water content the 50

Ø smoke outlet cm 10

Ø air intake cm 4

overall weight kg 265

heatable volume (depending on the type of system) m³ 705
