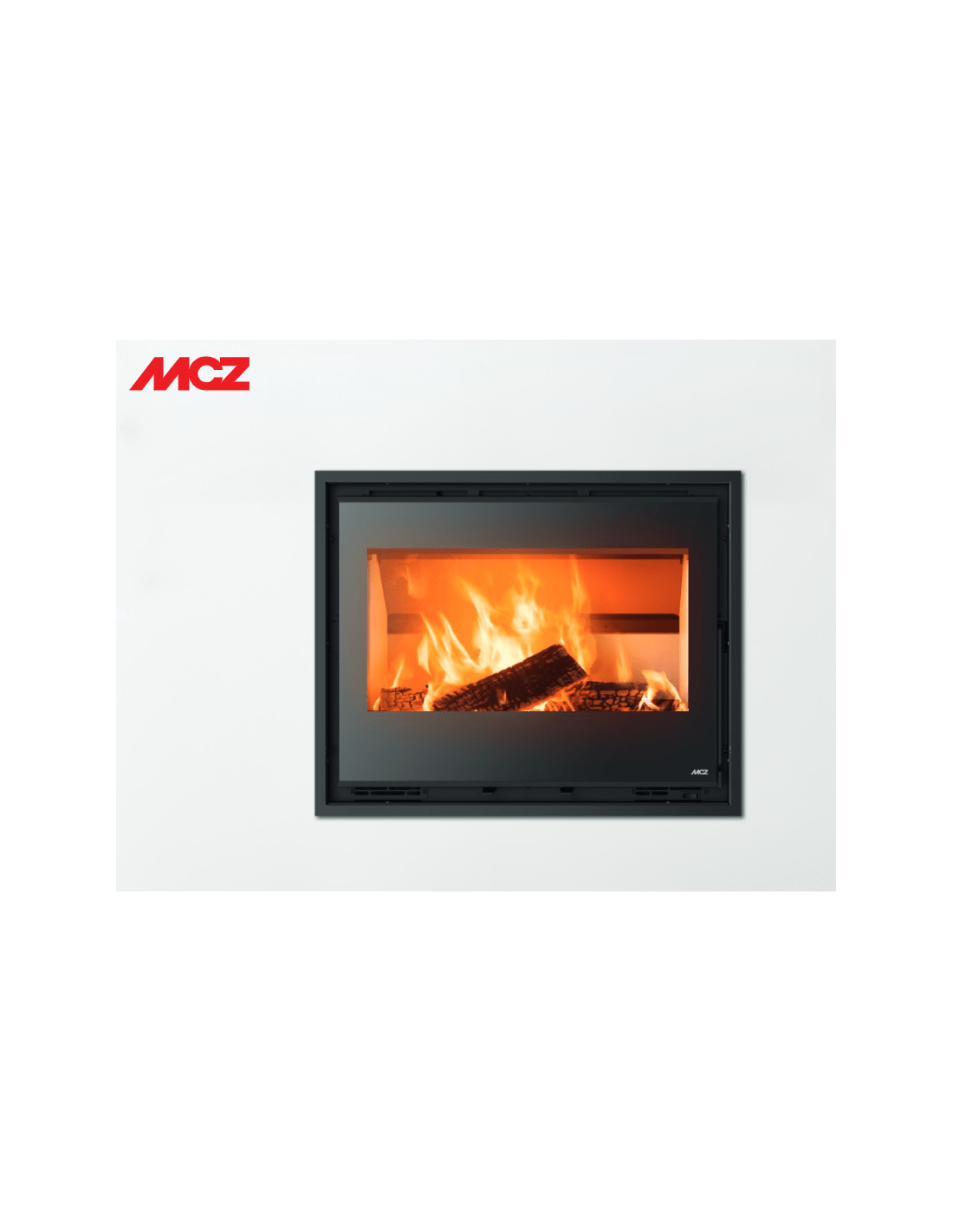

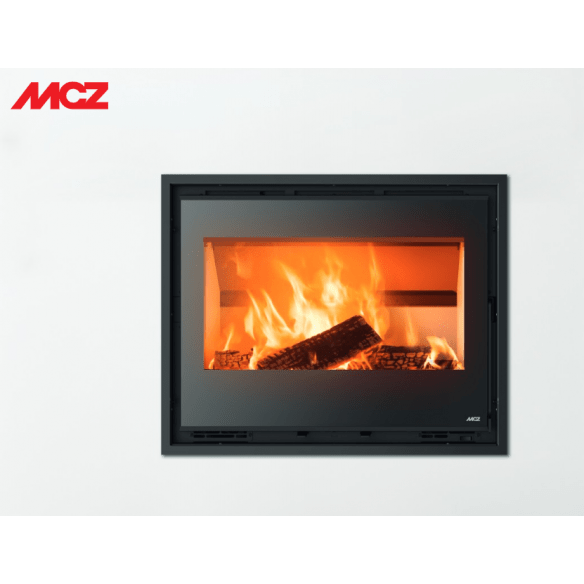

Wood-burning fireplace insert QBOX 70 WOOD 5S MCZ

Front wood insert

Fireplace insert with reduced depth, just 41 centimetres, wood-fired and ventilated. Its particularly small dimensions (L. 69 x H. 55 x D. 41 cm) make it ideal for both insertion in existing fireplaces and for new installations. It has a glass door and integrated ashtray drawer. Certified 5 stars ariaPULITA, it is included in the Conto Termico and in all tax breaks.

TECHNICAL DATA:

Energy efficiency class (A++/G scale) A+

Seasonal space heating energy efficiency (ηs) 75.00 %

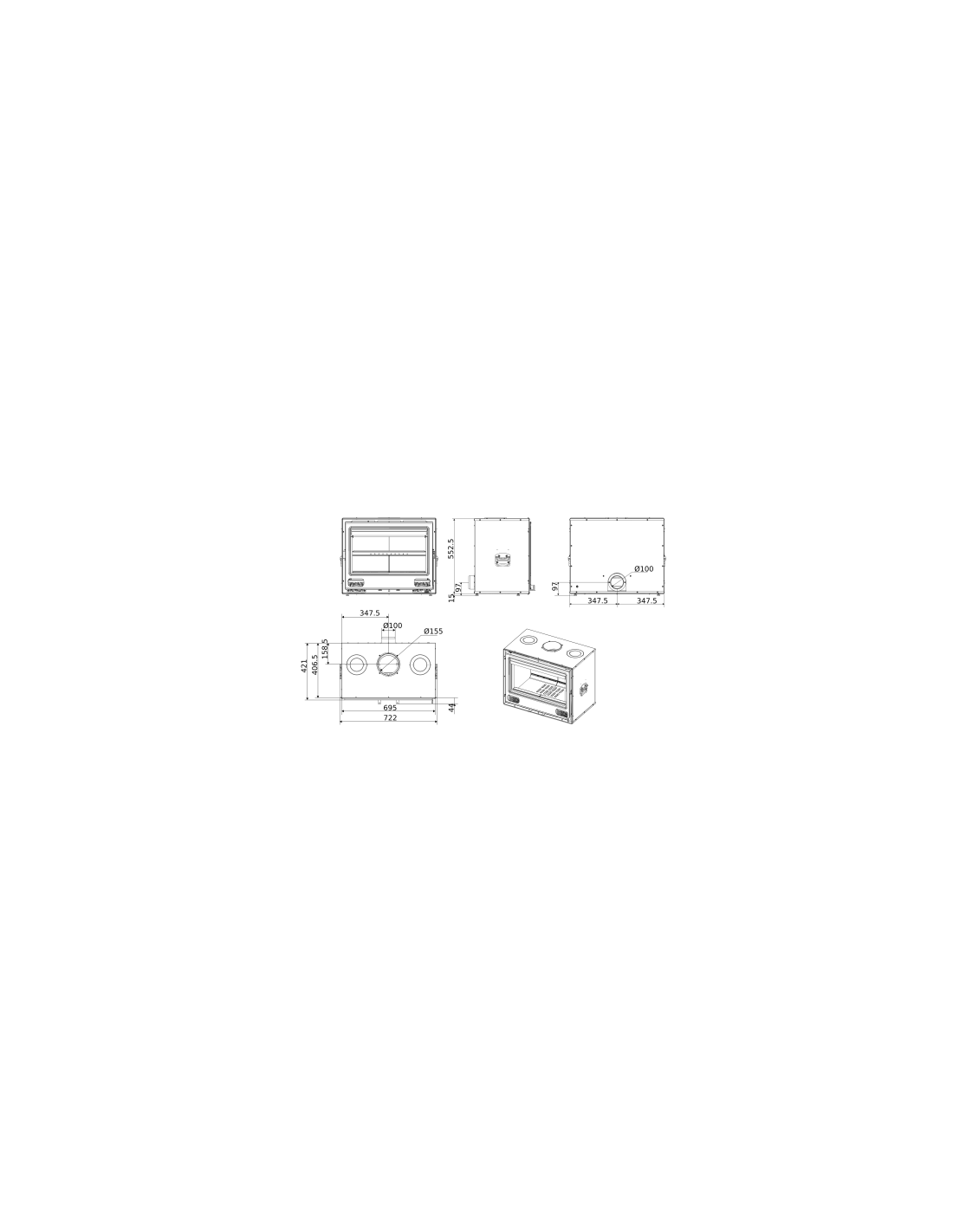

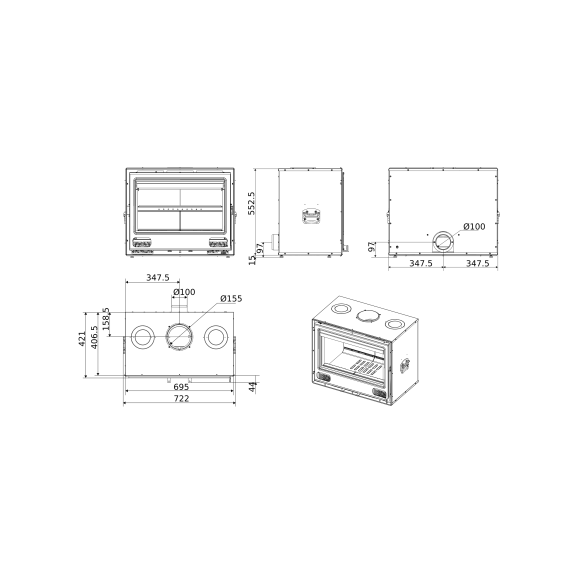

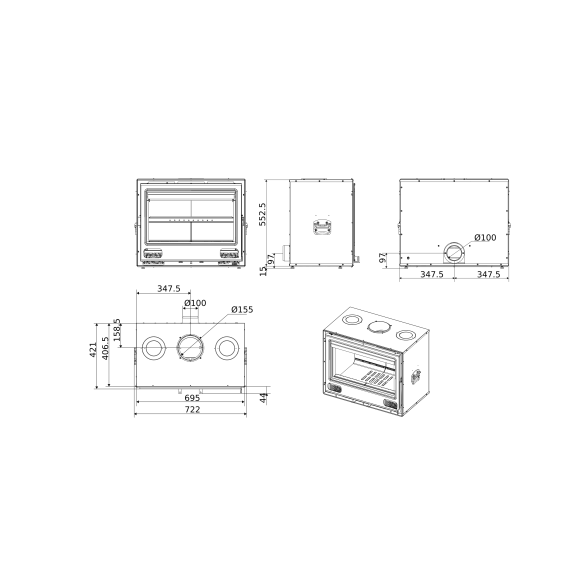

Dimensions (LxHxD) 72.2 x 55.3 x 42.1 cm

Nominal thermal power 8.80 kW

Minimum thermal power 4.20 kW

Yield at maximum 85.30%

Yield at minimum 80.20%

Minimum hourly consumption 1.22 kg/h (**)

Maximum hourly consumption 2.41 kg/h (**)

Heatable volume with requirement 20W/m³ 440.00 m3 (*)

Heatable volume with requirement 35W/m³ 251.00 m3 (*)

Heatable volume with requirement 55W/m³ 160.00 m3 (*)

Smoke outlet diameter 150 mm

Weight 120.00 kg

Smoke temperature 218.00 °C

Mass flow rate of fumes 6.80 g/s

(*) The declared volume represents the number of cubic meters that can be heated by the product based on the average needs of the home (expressed in W/m3). The values reported are purely indicative, for mandatory energy calculations a dedicated evaluation by a professional is necessary.

(**) Data that may vary depending on the fuel used.
